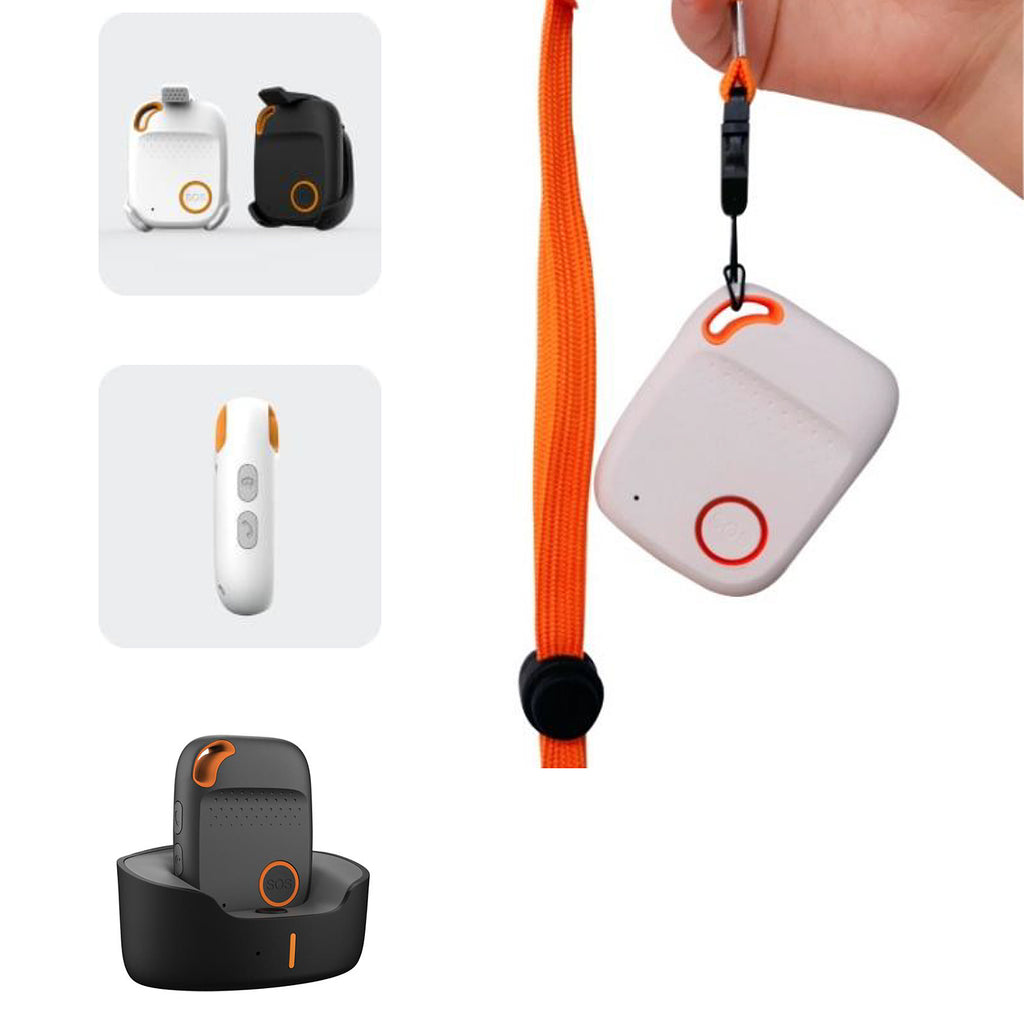

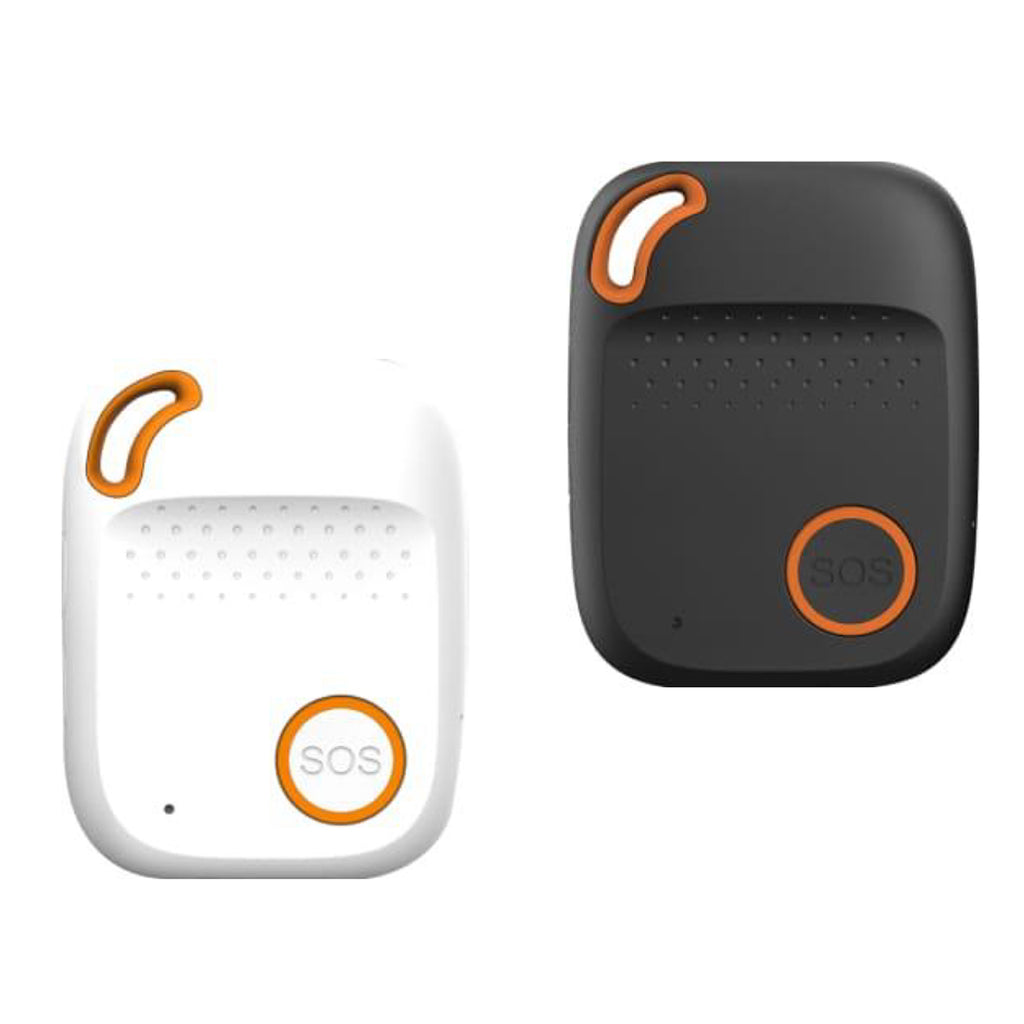

SED-EGIS MINI

Lone Worker / Man Down Personal Duress Device

The EGIS Mini is a feature packed small and lightweight personal duress device which utilizes the full suite of Sec-Eng Systems monitoring tools.

Featuring a rugged design with an IP67 soft touch design enclosure, the EGIS Mini is designed to meet Australian conditions.

The EGIS Mini can be used as a stand-alone system that can send SMS and make voice calls. It can also communicate with the Sec-Eng Systems Pegasus tracking Platform Alarm protocol.
(ASIAL serial contact ID via Sec-Eng SIIP rack mount interface)
SED-EGIS MINI

FEATURES:
  • Soft touch design
  • Coloured LED indicators
  • Comes with lanyard and belt clip
  • Smart USB charging base
  • Small and lightweight (only 54g)
  • Long lasting battery life of 120hrs
  • Waterproof IP67 rating
  • 4G mobile network connectivity
  • Bluetooth connectivity
  • Tilt and movement detection
  • Full 2-way voice inbound and outbound calling
  • Ability to SMS 10 mobile numbers with GPS location
  • Voice warnings and prompts
  • Ability to show location & poll in a real time via Pegasus

_______________________________________________________________

TECHNICAL DETAILS:
Enclosure Design: Soft touch rugged plastic design (IP67 rated)
Dimensions: 62mm x 47.5mm x 18mm
Buttons: 1 x SOS (front), 1 x Manual test (side), 1 x Silent mode (side)

Front LEDs: Green = Cellular signal
                    Blue = GPS signal
                    Red = Power indicator

Battery Type: 3.7v 1000mAh Li-lon
Battery Run Time: 24 hrs
Battery Charging Voltage: 5V DC

EGIS Charger Design: 4 Pin magnetic charging pod
EGIS Audio: Sealed speaker design
EGIS Microphone: Dynamic noise cancelling design
EGIS Movement and Tilt Sensor: 3 Axis digital accelerometer
EGIS Haptic User Feedback: 3.3V Vibration motor
Bluetooth: BT5.0 LE
SIM Type: Nano (Voice, SMS and Data enabled)

Method of Transmission:
GPRS / HSDPA / VOLTE (4G LTE)
Full 2-way voice & SMS functions.
4G LTE: Band 1 (1920- 2170MHz)
             Band 3 (1710-1880MHz)
             Band 5 (824-894MHz)
             Band 7 (2500-2690MHz)
             Band 8 (880-960MHz)
             Band 28 (703-803MHz)

Monitoring:

• $2.14 + GST per day, per device (pay in 1 year and get free 1 month monitoring) paid as $718.80 + GST per year, per device
• $69.90 + GST per month, per device (set up as direct debit)

• Includes 24/7 professional monitoring

12-Months Warranty

Certifications:
UKCA / RoHS / CE / FCC
